Highway Foot Rest Kit for Yamaha FJR 1300
Highway Foot Rest Kit for Yamaha FJR 1300
Couldn't load pickup availability

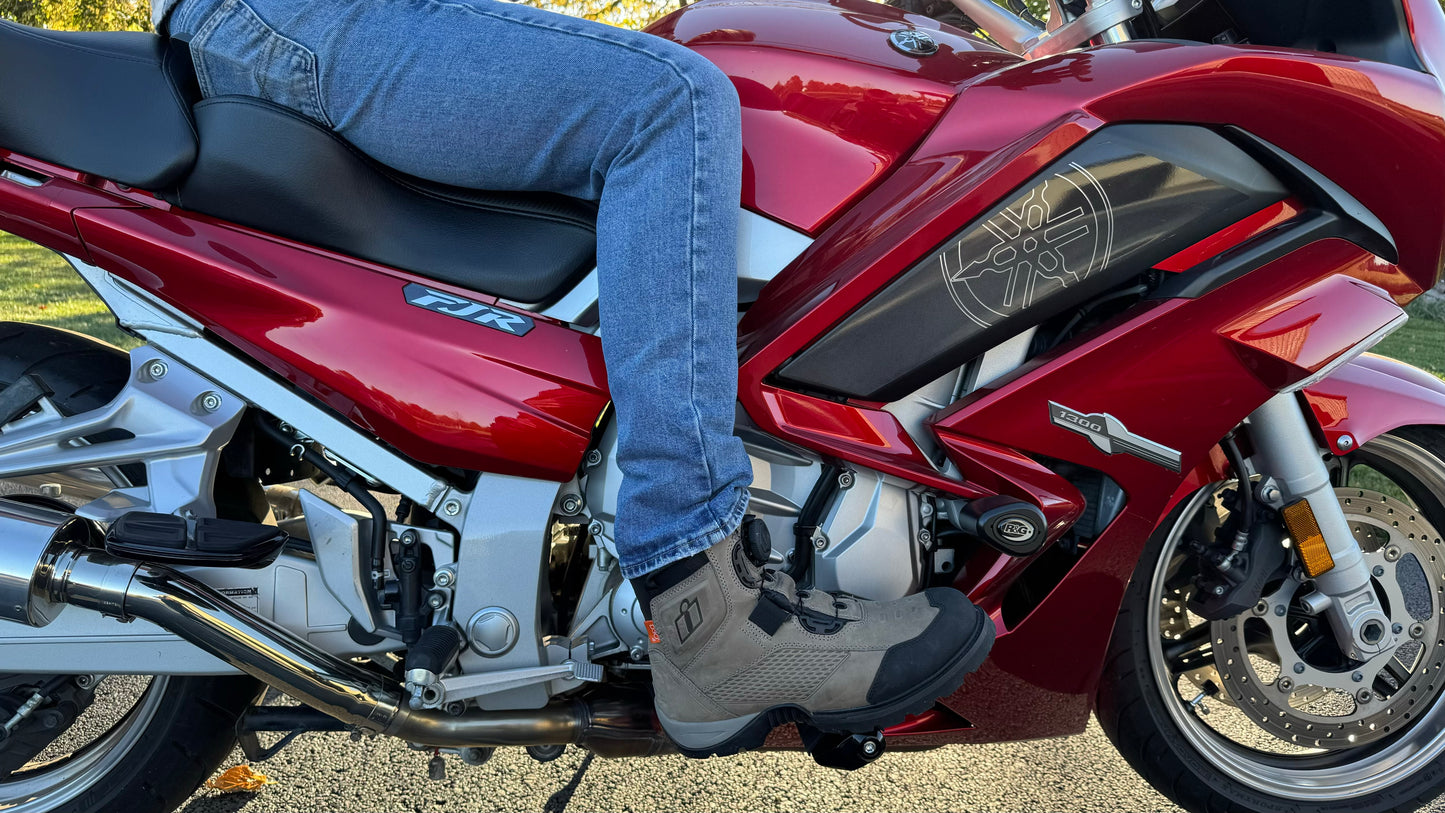

Enhance your riding experience with this highway foot rest mounting kit for the Yamaha FJR1300. These foot rest plates are designed to mount to the engine case of the FJR 1300. They are easy to install with the included hardware so you can get right to riding in comfort. Simply remove two screws from the Crank Case Cover on the Left Side and two screws from the Oil Pump Cover. Use the Included screws to mount the Foot Rest Plates. The mounting plates are made of powder coated aluminum, the folding Foot Rests are powder coated steel, and plate mounting fasteners are stainless steel to ensure longevity. When the Foot Rests are folded they maintain near original ground clearance ensuring they will not scrape the ground when riding curvy roads.
Fitment
2003-2024 Yamaha FJR1300 (A, AE, ES)
Not compatible with tubular engine guards (Ex. Trex Engine Guard Crash Cage)!

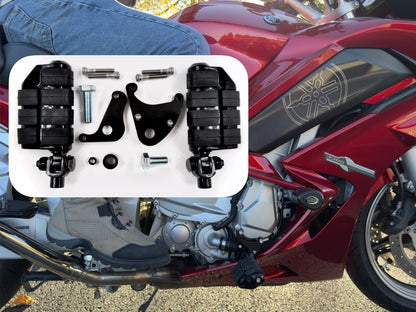

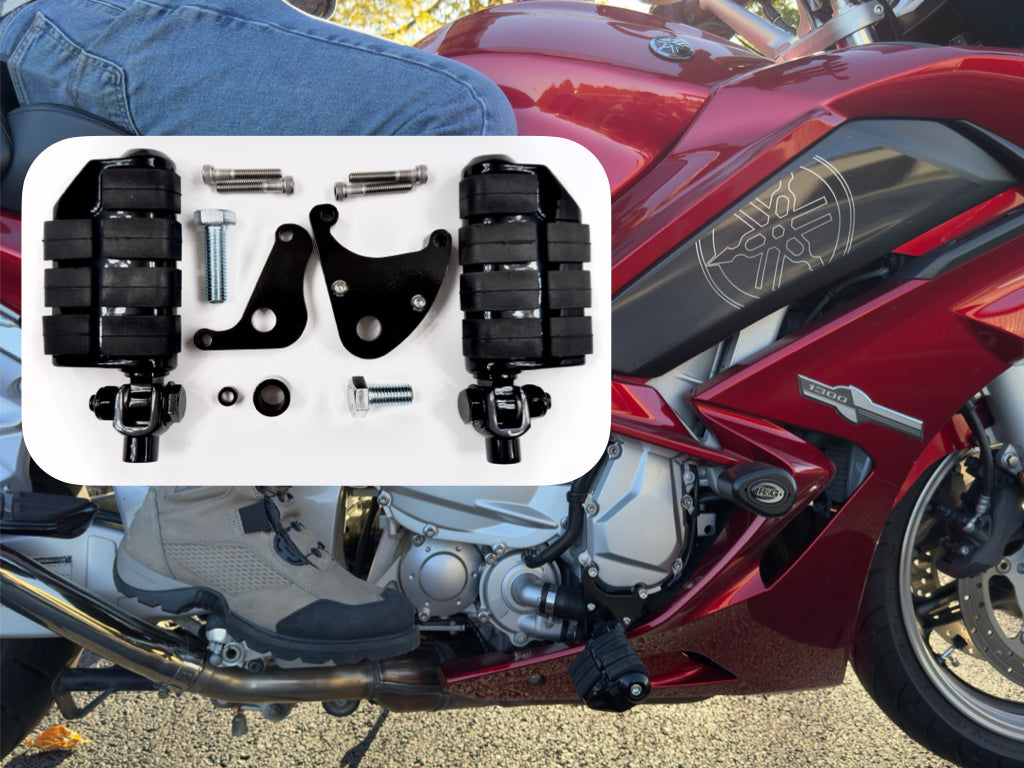

What's included
- Left Mounting Plate
- Right Mounting Plate (2 plates come bolted together)
- Plate Mounting Bolts
- Left Plate Mounting Spacer
- Left Peg Mounting Spacer
- Folding Foot Rests with Mounting Bolts
Technical Details
Helpful Dimensions
| Item | Value |
| Mounting Plate Material | Aluminum |
| Mounting Plate Finish | Silver Power Coat |
| Mounting Plate Weight - Right | 101 grams |
| Mounting Plate Weight - Left | 46 grams |
| Mounting Plate Fastener Material | Stainless Steel |
| Foot Rest Material | Steel |
| Foot Rest Finish | Powder Coat Black |
| Foot Rest Fastener Material | Steel |
| Foot Rest Fastener Finish | Zinc Plated |
Installation
Tools Required
Tool |
Torque |
Location |
| 5mm Hex Key |
8.7 FT-Lbs 11 Nm |
Plate Mounting Bolts |
| 19mm Wrench |
45 FT-Lbs 57 Nm |
Foot Rest Mounting Bolts |
| 17mm Wrench or Socket | Tighten to Feel | Foot Rest Pivot Bolts |
| 17mm Wrench or Socket | Tighten to Feel | Foot Rest Pivot Nuts |
Exploded Views
Right Side Exploded View
Left Side Exploded View
